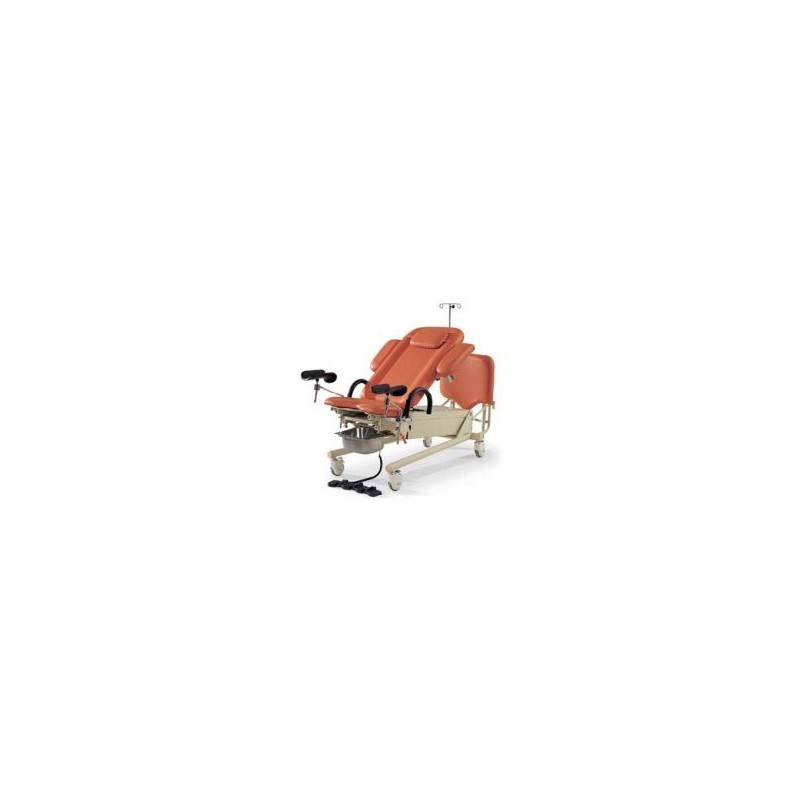

Acare HCB 04LY Gynecology Bed Electric

Gynecology Bed Electric with Motor controlled back rest and knee break hi‐lo

Gynecology Bed Electric
Brand : Acare
Country of Origin : China
Type : HCB 04LY


Features :

  • Motor controlled back rest and knee break hi‐lo;
  • Dewert 24V DC output voltage , CE, EMI,UL approve actuator imported from Germany, easy maintenance
  • Side rail and foot mattress can be adjusted freely, it meets different position requirements;
  • Retractable leg board, can meet different inspection requirement;
  • Foot operator control , convenient to use;
  • Removable calf support and arm rest can be adjusted to any position;
  • Height adjustable


Specification :

  • Construction : Square Steel Pipes
  • Finishing : Powder Coating (Anti Bacteria)
  • Overall Dimensions ( L x W x H ): 2200 mm x 950 mm x 580 – 980 mm
  • Mattress dimension : 1900 mm x 600 mm x 580 – 980 mm
  • Save working load : 200 kg
  • Max. load capacity : 250 kg
  • Dead weight : 120kg
  • Castor : 4 castor Ø5" Luxury castors
  • Back mattress
  • Adjustable angle (Back rest tilting) : ‐10° ‐60° can be quick released to any position
  • Time for any way : 20 s
  • End mattress : Removable
  • Body lifting
  • Adjustable height : 550 – 980 mm
  • Time for any way : 25 s
  • Quick release (time from top to bottom) : 1 –2 s
  • Electric system
  • Input : 200 – 260 V AC / 50 Hz
  • Output : 24 V DC
  • Accessories :
  • ‐Neck Pillow and Stainless Steel Basin
